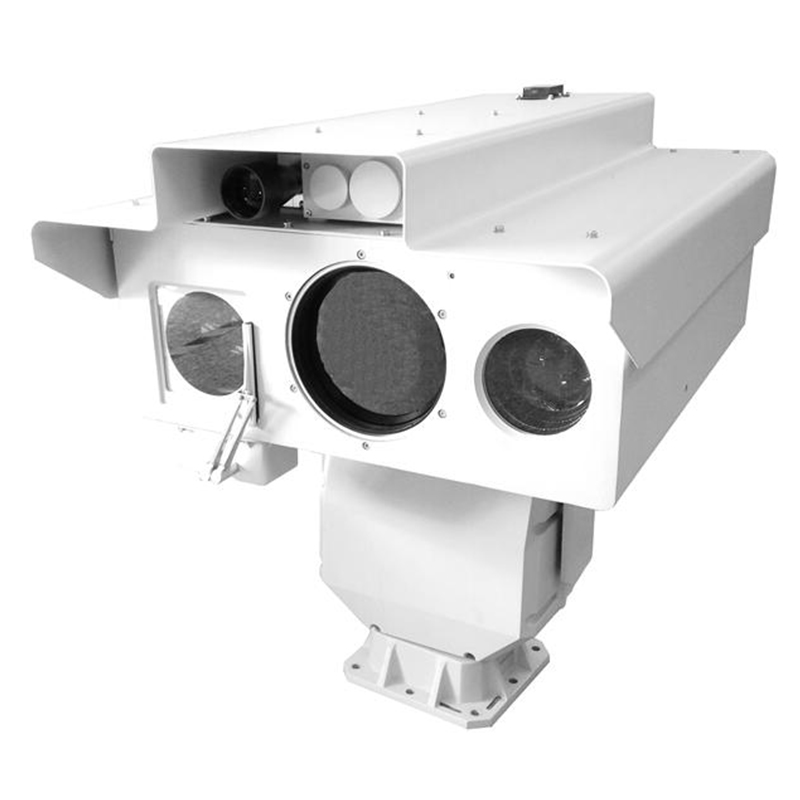

Features
◆ Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large
◆ Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
◆ Infrared detector with high temp sensitivity, with min temp resolution of 50mK
◆ Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black
◆ Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring
◆ MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition
◆ Supporting fog penetration, backlight compensation, multistage wide dynamic
◆ Optional auto focusing function, realizing multiple focusing mode and triggering mode
◆ Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
◆ 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
◆ External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment
◆ Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain
Technical Data
| Operating distance | HD camera | Night vision | 4~5km (Target: human) |
| Day vision | 8~10km (Target: human) |
| Thermal imaging | object | human(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| Detection distance | 6440m | 18400m |
| Recognition distance | 2140m | 4600m |
| Identification distance | 1070m | 2300m |
| High definition lens | Focal lens | 16.7~1000mm |
| FOV | 0.45°~25° |
| Iris | Auto |
| Focus | Auto/manual |
| Fog penetration | support(optional) |
| Camera | Sensor type | 1/1.8”Progressive Scan CMOS |
| Coding mode | H.264/H.265 |
| Video resolution | 2MP, CIF, supporting three stream |
| Video bit rate | 32Kbps~16Mbps |
| Video frame rate | 1~25f/s(50Hz),1~30f/s(60Hz) |
| Illuminator | Laser on/off | Auto/manual |
| Power | 20W |
| Wave length | 810nm |
| Illuminating angle | 0.3°~30°continuous change |
| Light homogenization | MCIC multi-tube core fusion mixed mode light homogenization technology |
| Infrared lens | Focal length | 20~230mm |
| FOV | 2.0°x1.6°～22.9°x18.2° |
| F value | F1.0~F1.2 |
| Lens control | electric zooming, electric focusing (auto focusing optional) |
| Detector | Detector type | Uncooled FPA |
| Effective pixels | 640x512 |
| Spectral range | 8~14μm |
| Temp sensitivity | ≤50mK@F1.0,300K |
| Frame rate | 25Hz |
| Image processing | DDE, pseudo color |
| Pan-tilt | Carrying capacity | 50kg (top load) |
| Angle | Horizontal 360°continuous rotation, vertical: -45°~+45° |
| speed | Horizontal 0.01°~12°/s, vertical 0.01°~8°/s |
| Preset bits | 255 |
| Cruising | 2 paths, 64 bits each path |
| Anti-lightning | 2000V |
| Laser range finder | Max range | 10km (In the mode of mid-latitudes atmosphere, T=20℃, relative humidity 70%,1 standard atmospheric pressure, horizontal visibility>23.5km） |
| Min range | 100m |
| Precision | ±3m |
| Repetition frequency | 0.2Hz |
| GPS | Antenna | Built in |
| sensibility | -165 dBm |
| Precision | 5 m |
| Location speed | Under open sky conditions Hot start 1s Warm start 35s Cold start 38s recapture ＜1s |
| Height | < 18,000 m |
| Speed | < 515 m/s |
| Acceleration | < 4 g |
| interface | Power supply | DC 30V |
| Network interface | 1×10Base-T/100Base-TX,RJ45 |
| Environment indicators | Working temp | -25℃~+55℃ |
| Storage temp | -40℃~+65℃ |
| Protection grade | IP66 |
| Power supply | power supply | Appendant AC90V~305V~DC30V water proof power supply |
| power consumption | ≤200W |
| Physical features | weight | ≤ 65kg |
| Installation method | Outdoor pedestal mounting |
