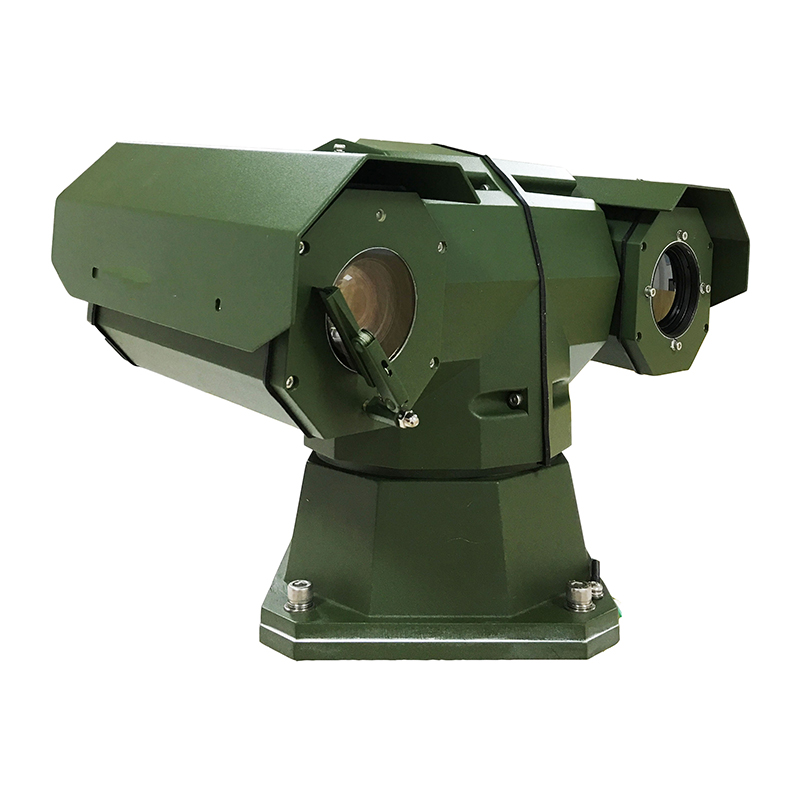

Overview
◆ It adopts thermal imaging technology and has a clear image, not restricted by light
◆ low light color to black camera, can realize continuous monitoring day and night
◆ 30X optical zoom, support automatic switch day&night mode, backlight compensation, wide dynamic range, auto white balance, auto gain control, automatic exposure control
◆ integrated pan-tilt, realize all directions, no blind spot monitoring and high accurate orientation
◆ high intelligent, easy to operate and maintain
◆ passive thermal imaging with good hidden features,uneasy to be discovered
◆ smart shell with professional design, anti-corrosion, waterproof and acid rain proof
◆ low power consumption, little heat, stable performance
Technical Data
| Monitoring distance | Visible light | 1000m |
| Thermal imaging | object | Human(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| Detection | 1400m | 4000m |
| Recognition | 460m | 1000m |
| Identification | 230m | 500m |
| Camera and video coding | Sensor type | 1/2.8" Progressive Scan CMOS |
| Total pixels | 2.1 MP |
| Lens focal length | f=5.9~188mm, 32X optical zoom |
| Camera control | Auto gain control, auto white balance, auto backlight compensation,
supporting manual and auto day and night mode switch |
| Coding format | H.264/H.265 |
| Video resolution | 1920*1080 |
| frame rate | 1~30frate/s |
| Title | Title, date, time |
| Image adjustment | brightness, contrast ratio, saturation |
| Thermal imaging camera | Detector type | uncooled microbolometer focal plane array |
| Effective pixels | 384×288 |
| Spectral range | 8~14μm |
| Temp sensitivity | ≤50mK@F1.0,300K |
| Focal length | 50mm |
| FOV | 8.78°×6.59° |
| Frame rate | 25Hz |
| Lens control | Electric focus, auto focus |
| Image processing | DDE, pseudo color |
| Pan-tilt | Angle | Horizontal 360°continuous rotation, vertical -90°~+90° |
| speed | Horizontal 0°~80°/s, pitching 0°~60°/s |
| Presets | 255 |
| Cruise | 6cruising paths,20 bits each path |
| Anti-lightning | TVS 6000V |
| Interface | Power interface | DC24V,±10% Iin≥3A |
| Network interface | 1×10Base-T/100Base-TX,RJ45 |
| Environment indicators | Working temp | -25℃~+55℃ |
| Storage temp | -40℃~+65℃ |
| Protection grade | IP66 |
| Power consumption | ≤60W |
| Physical features | weight | 12 kg |
| Size | 374*218*325mm(L×W×H) |
| Installation method | Outdoor pedestal mounting |
