Introduction

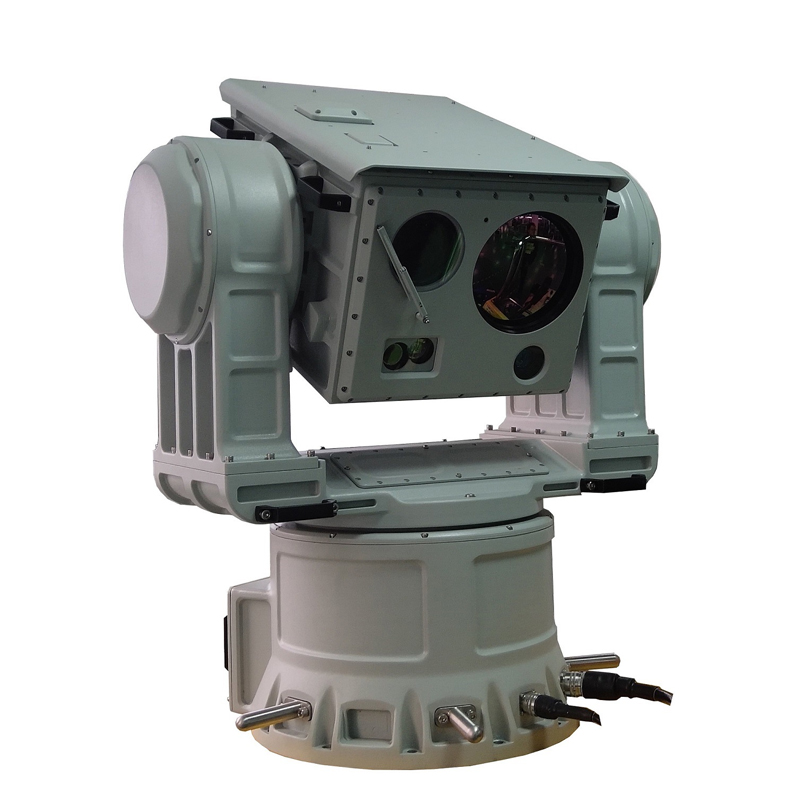

Heavy loading U-shape Optics Thermal Camera, model SHR-UT500WHLV3020HZIR690R-LRF20AT is a night vision device with independent intellectual property rights. It integrates visible light camera and infrared thermal camera. The device is with two work modes: day mode and night mode. In day mode, it uses visible light camera, and at night, laser illumination and thermal imaging to observe.
Adopt laser infrared night vision technology, with good background contrast, clear imaging, and is not affected by external lighting. The use of thermal imaging night vision technology, with clear imaging, good concealment, and is not restricted by the light source. The visible light camera and the thermal imaging technology are effectively combined to achieve continuous monitoring day and night.
This product also uses a number of unique key technologies in materials and processing. The shell is made of high-strength aluminum alloy and stainless steel, and is specially reinforced and sealed. It can be widely used in night time, harsh environment, long distance, wide range. Concealed real-time monitoring occasions.
Features
◆ Adopt laser illumination system, long lighting distance and large scope, realize monitoring at 0Lux total darkness.
◆ Adopt long range visible light camera, coordinate with thermal imaging dual-spectrum integrated design, realize day night continuous monitoring .
◆ Day night low illumination mega pixels color to black camera, realize day night continuous monitoring.
◆ Adopt continuous zoom thermal imaging technology, clear image and long detection distance.
◆ Passive thermal imaging is concealed and difficult to find.
◆ Heavy loading high performance U-shape pan tilt, realize no blind angle monitoring in all directions, and high precision positioning.
◆ Integrated intelligent temperature control system ensures that the electronic equipment inside the shield works all day round throughout the year.
◆ External MMA fine-tuning mechanism, laser alignment adjustment can be completed without disassembling.
◆ Easy to operate, easy to use and maintain.
◆ The whole machine is reinforced and designed to resist strong wind, salt spray, high and low temperature resistance, etc.
◆ Protection grade IP66.
Main Technical Data
| Distance | Visible light | Day vision 10km |
| Night vision 4km |
| Thermal imaging | Target | Human (1.8m×0.5m) | Vehicle (2.3m×2.3m) |
| Detection | 15400m | 19500m |
| Recognize | 7000m | 12600m |
| Identification | 4000m | 10000m |
| HD camera lens | Focal length | 12.5~750mm，60× optical zoom |
| FOV | 28.7°~0.5° |
| Optical fog penetration | Support |
| Auto focus | Support |
| Wiper | Support |
| HD Camera | Sensor type | 1/1.8'' Progressive Scan CMOS |
| Pixels | 2mp |
| Color mode | Integrated ICR dual filter day and night switching,
day and night dual mode parameter settings |
| Shutter speed | Auto/manual adjust |
| Camera control | Auto gain control, auto white balance, supporting manual and auto day and night mode switch |
| Fog penetration | ON/OFF |
| WDR | ON/OFF |
| Back-light compensation | ON/OFF, area optional |
| Interested area | ON/OFF, area optional |
| Back focus fine tuning | Support, can be debug remotely |
| Noise reduction | 3D digital noise reduction |
| Coding format | H.264/MJPEG/MPEG4 |
| Video resolution | 1920×1080, support three stream |
| Bit rate | 32Kbps~16Mbps |
| Frame rate | 50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720) |
| Subtitle overlay | Station logo, date, time |
| Image adjust | Brightness, contrast, saturation, sharpness, etc. |
| Network protocol | TCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP |
| Features | Support heartbeat, video cover, password protection, mirroring |
| Laser lens | Focal length | 100mm HD laser telephoto lens |
| Illumination angle | 0.3°~20° continuous change |
| Coating | Multi-layer near-infrared antireflection coating |
| Preset | Precision potentiometer voltage feedback |
| Zoom mode | 3CAM |
| Axis adjust | External MMA fine tuning mechanism |
| Laser illuminator | Power | 15W |
| Wavelength | 810nm |
| Laser switch | Auto/manual control |
| Even light | MQMM |
| Sealing | Sealing with Nitrogen |
| Heat dissipation | Array air-cooled conduction heat dissipation |
| Infrared lens | Lens | 34~690mm, 21× optical zoom |
| FOV | 0.8°×0.7°~16.1°×12.9° |
| Lens control | E-zoom, E-focus, auto focus |
| IFOV | 0.02~0.44mrad |
| Lens cover | Available |
| Detector | Sensor type | Cooled FPA |
| Pixels | 640×512 |
| Spectrum range | 3.7~3.8μm |
| NETD | ≤25mK@F1.0,300K |
| Frame rate | 25Hz |
| NUC | Auto/ manual/ background correction |
| Image process | DDE, psuedo color |
| Starting time | Less than 7.5 mins (25℃) |
| Laser Rangefinder | Max range distance | Not less than 20km. (Under the atmospheric mode of mid-latitude area,
T=20°C, relative humidity 70%, 1 standard atmospheric pressure,
and horizontal visibility greater than 23.5km.) |
| Min range distance | No higher than 300m |
| Range deviation | ±5m |
| Working frequency | 12 times/min |
| Casing shield | Material | Precision cast aluminum alloy |
| Structure | Integrated multi-window design |
| Window glass | Nano optical antireflective glass |
| Painting | PTA three anti-coating, anti-seawater corrosion |
| Photoelectric pan tilt | Horizontal angle | 360°continuous |
| Vertical angle | -45°~+90° |
| Horizontal speed | 0.01°~100°/s |
| Vertical speed | 0.01°~100°/s |
| Azimuth and pitch angle deviation | ≤0.05° |
| Control operation accuracy | ≤0.05°/step |
| Preset | 2048 |
| Preset accuracy | ±0.05° |
| Auxiliary switch | 2 |
| Auto cruise | 2pcs, each can set 64 presets |
| Auto scan | 1 |
| Communication protocol | Pelco-D, Pelco-P optional |
| Communication baud rate | 2400/4800/9600/19200 bps optional |
| Thunder-proof | Power 4000V, video 2000V |
| Tracking function | Features | Programmable two-axis platform drive control (PID),
support for rate control; built-in multiple tracking algorithms |
| Tracking algorithm | Correlation tracking algorithm,
template matching tracking algorithm, color tracking algorithm |
| Min target size | 3×6 pixels |
| Max target size | 200×100 pixels |
| Number of motion detection targets | 5 |
| Interface | Power | DC24V, DC48V, DC75V |
| Network | 1×10Base-T/100Base-TX RJ45 |
| Others | RS422 |
| EnvironmentIndicator | Working temperature | -25℃~+55℃ |
| Storage temperature | -40℃~+65℃ |
| Protection | IP66 |
| Anti salt fog | PH 6.5~7.2, continuous spray 48 hours |
| Anti-wind | 10 levels of wind can work normally, 13 levels of typhoon are not blown down |
| Power | Whole camera | DC24V to DC24V, DC48V, DC75V |
| Consumption | ≤500W |
